1. Introduction

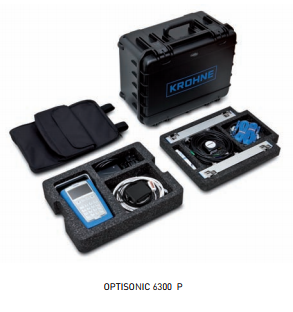

Portable ultrasonic clamp-on flowmeter from Krohne. The perfect measuring device for temporary flow monitoring in numerous applications. Thanks to its mobility, the device is equally suited to comparative measurements on stationary measuring equipment or for use as a short-term replacement for faulty devices or even for quick liquid measurement with the proven precision and reliability of KROHNE ultrasonic technology.
We simply attach the sensor unit to the tube and connect the compact evaluation unit and read the results.
All it takes are a few simple moves and just a few minutes to complete installation. It is powered by the integrated battery (14 hours running time) or the mains adapter supplied. The readings are shown on the large colour LCD in a graphical format. The OPTISONIC 6300 P stores the readings in the integrated memory for data logging. They can then be transferred via USB stick to a PC.
RMS provide in the end of each visit a full report for the reading and
2. Features
- Protection degree of IP 67.
- Medium Temperature max 120°C.
- Pipe Diameter from DN 15....DN150.
- With wall display and totalizer and 4 optical keys.
- Battery running time of 14 hours.
- Output signal (4...20 mA /HART + pulse/ frequency + status+ 2x mA input)
- Accuracy ±1% of the measured value for DN ≥50 mm /2" and v > 0.5 m/s.
- Accuracy ±3% of the measured value for DN<50 mm / 2" and v > 0.5 m/s.
- Data logger with maximum number of 150000 values / 50 files can be stored.
- Dual measurement for exact 2-beam measurement, like on larger diameters or when comparing two measuring points.
- Heat flow volume measurement.
3. Prerequisite for the OPTISONIC 6300 P Usage
- Required inlet run ≥ 10 DN straight lengths
- Required outlet run ≥ 5 DN straight length
- Pipe Thickness < 200 mm
- Liner Thickness < 20 mm
- Cable length 3 meters
- Permissible gas content ≤ 2%
- Permissible solid content ≤ 5%
