1. Features

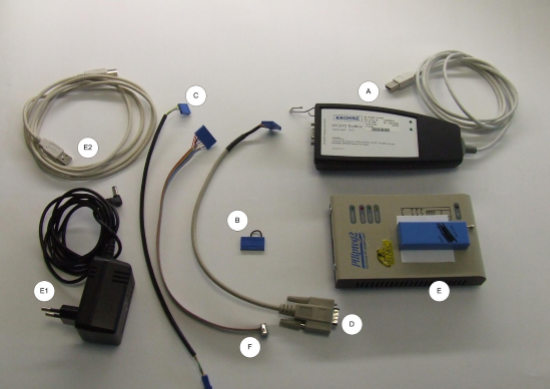

The VFC070 ToolBox is a tool for production and service that enables the quick configuration and testing of KROHNE vortex flow meter OPTISWIRL 4070. It can read out the compete converter record, edit it and process it further as well as write it back to the converter. Any required reprogramming of the converter firmware can be performed automatically by this toolbox.





In addition, for the final assembly of a vortex measuring device, it is possible to use the ToolBox to
merge order-related converter and measuring sections into one complete device and to store all records
in one database and create configuration protocols
.

2. Usage

  1. Quick configuration and testing of vortex converters.
  2. Review and analyzing of the errors.
  3. Simulation.
  4. Load converter data from the device to be be further processed, saved or printed in any order .
  5. Saves converter data to various destinations including the data base.
  6. Copies converter data from one converter to another.
  7. Loading the converter record from the (KROHNE) production database.
  8. firmware update.
